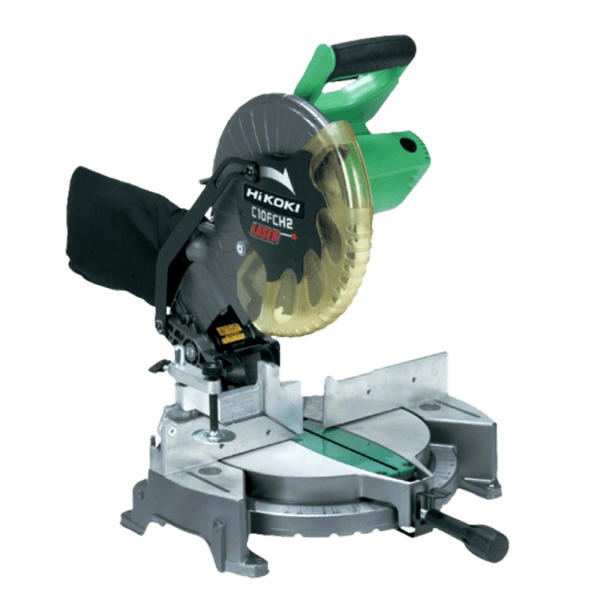

HTC-C10FCH2 – HIKOKI MITRE SAW 255MM 1520W LASER GUIDE
Compound Mitre Saw 255mm 1520W With Laser Guide
Features
Large fence height increases job stability and safety.
Electronic brake for increased user safety.
Positive mitre stops for quick and easy adjustment.
D handle for ergonomical cutting action.
Lightweight for easy transportation.
Equipped with chip deflector.
PDF Line Drawing
Description
Compound Mitre Saw 255mm 1520W With Laser Guide
Features
Large fence height increases job stability and safety.
Electronic brake for increased user safety.
Positive mitre stops for quick and easy adjustment.
D handle for ergonomical cutting action.
Lightweight for easy transportation.
Equipped with chip deflector.
Specifications
Capacity: Blade Dia: 255mm
(HxW) Cross Cut: 0 degrees 59x144mm or 89x101mm
Mitre Cut: 45 degrees 59x102mm or 89x70mm
Mitre Cut: 52 degrees 59x89mm or 89x54mm
Bevel Cut: 45 degrees 41x144mm
Compound
Mitre 45 degrees and Bevel 45 degrees 41x102mm
Power Input: 1 520W
No Load Speed: 5 000 per minute
Mitre Angle: Right: 0 – 52 degrees
Left: 0 – 52 degrees
Bevel Angle: Left: 0 – 45 degrees
Positive Angle Stop: 0, 15, 22.5, 31.6 and 45 degrees
Dimensions: 460 x 628 x 561mm
Weight: 11.6kg
Standard Accessories: Blade, Dust Bag, Wrenches, Sub Fence, Vise Ass’y
CODE: HTC-C10FCH2
BARCODE: 4966376290598
HEIGHT: 40.5cm
LENGTH: 52.5cm
WIDTH: 35.0cm
WEIGHT: 11.6kg
